Hydrogen Material Benefits
Engineered for the Most Demanding Stack Positions
High Chemical Resistance
Resists virtually all acids, bases and solvents.
Low Permeability
Non-porous after cycling — zero gas crossover.
Electrical Insulation
High dielectric anode/cathode separation.
High Temperature Resistance
Reliable from -328°F (-200°C) to 600°F (316°C).
Cleaner Solution
FDA-compliant. No catalyst poisoning.
Consistent Quality
Roll-to-roll, tight tolerances, every run.

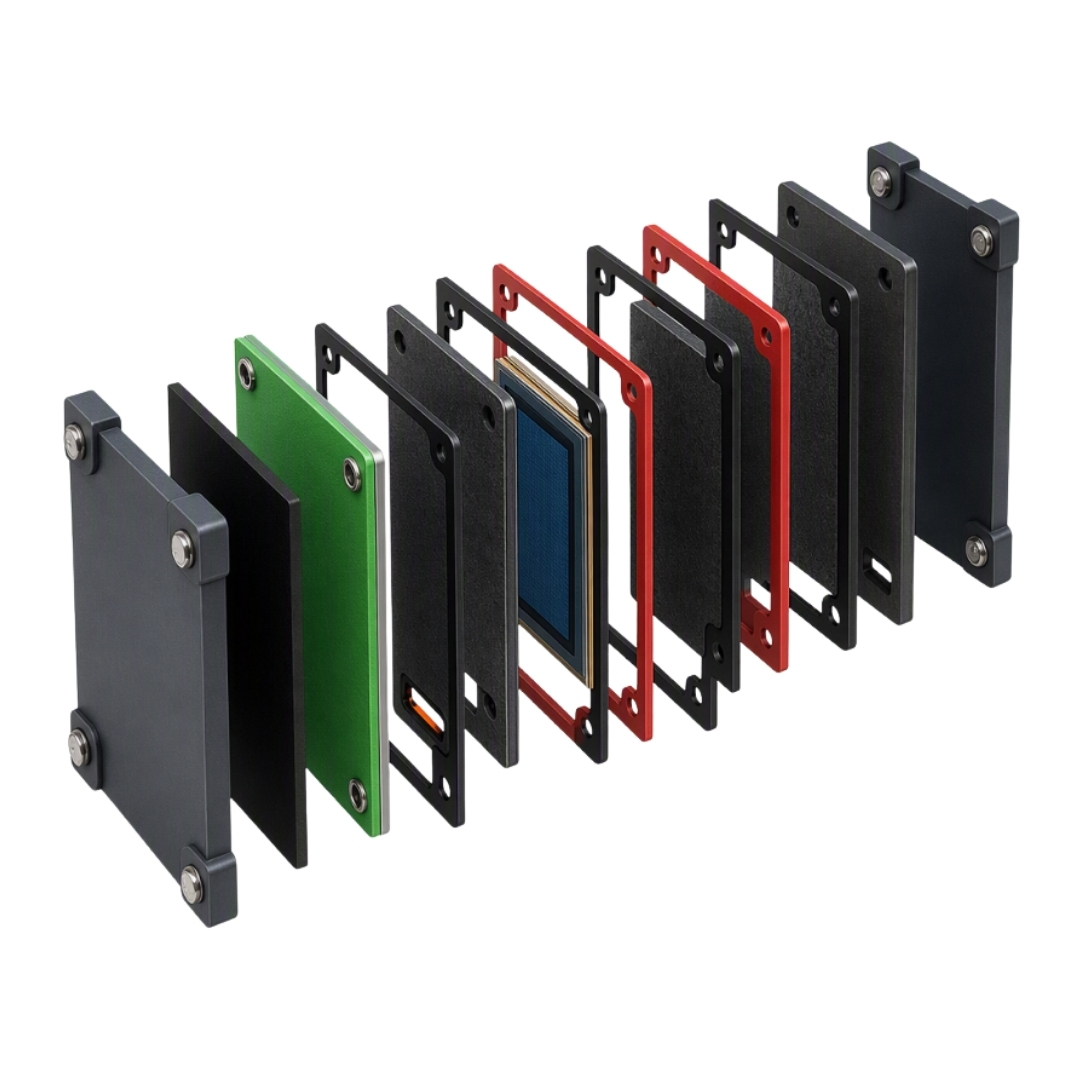

Gaskets for Fuel Cells & Electrolysers
Multi-functional, reliable, and robust, TCI composites serve as seals and separator components within fuel cell systems — ensuring energy efficiency and stack modularity. Reduced material creep and excellent tensile strength provide long-lasting performance. Supplied as sheets, roll-to-roll, or die-cut to specification.

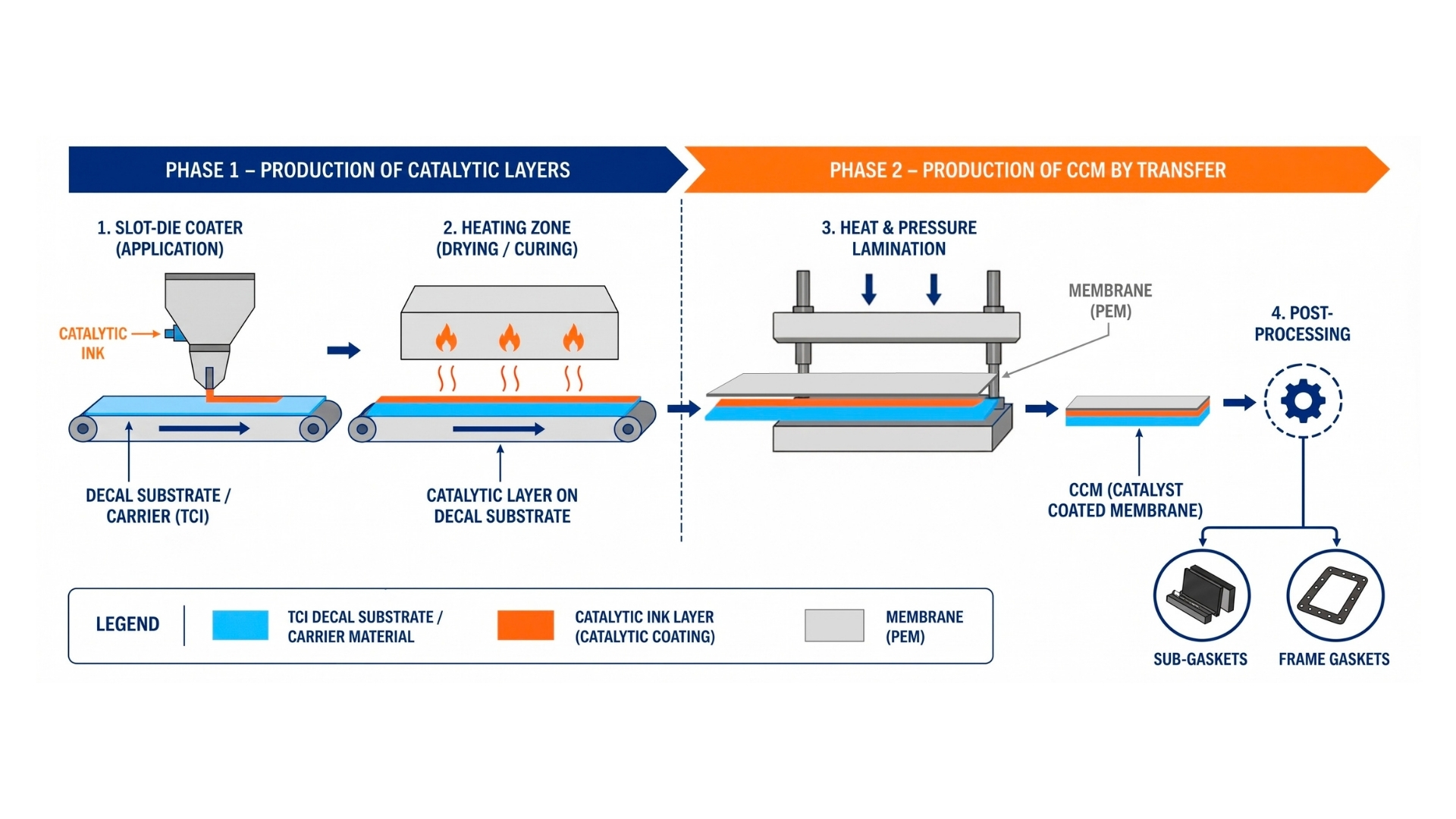

Release Solutions for Decal Transfer
TCI release solutions serve as processing belts and release sheets for thermal curing and lamination — providing a flat, smooth, mechanically stable substrate for even catalytic ink distribution. At the final stage of CCM production, substrates remove cleanly, allowing 100% transfer. Extremely thin and tightly toleranced, TCI carriers can support thinner catalyst layers.
TCI materials for Hydrogen applications
Find the right TCI material for your hydrogen application.
| Key Properties | H2 Application | |
|---|---|---|
| CrossFilm™ (100% PTFE) | Zero porosity · 600°F (316°C) · FDA/FM certified | Decal carrier · frame gaskets · release liners |
| PTFE Coated Polyimide | High dielectric strength · chemically inert | Sub-gaskets · frame gaskets · decal substrate |
| FEP Coated Polyimide | Superior release · weldable · low hysteresis | Sub-gaskets · frame gaskets · CCM carrier |
| LCP (Liquid Crystal Polymer) | Lowest H₂ permeation · bonds to metals | Sub-gaskets · frame gaskets |
| PTFE Coated Glass Fabric | Dimensionally stable · high tensile strength | Decal carrier · lamination belts |
| Laminated PTFE Composites | Multi-layer · custom thickness · zero permeation | Gaskets · liners · carrier films |
| DOWNLOAD BROCHURE | ||
TCI Materials for Hydrogen applications
Engineered fluoropolymer films for fuel cell and electrolyser applications.

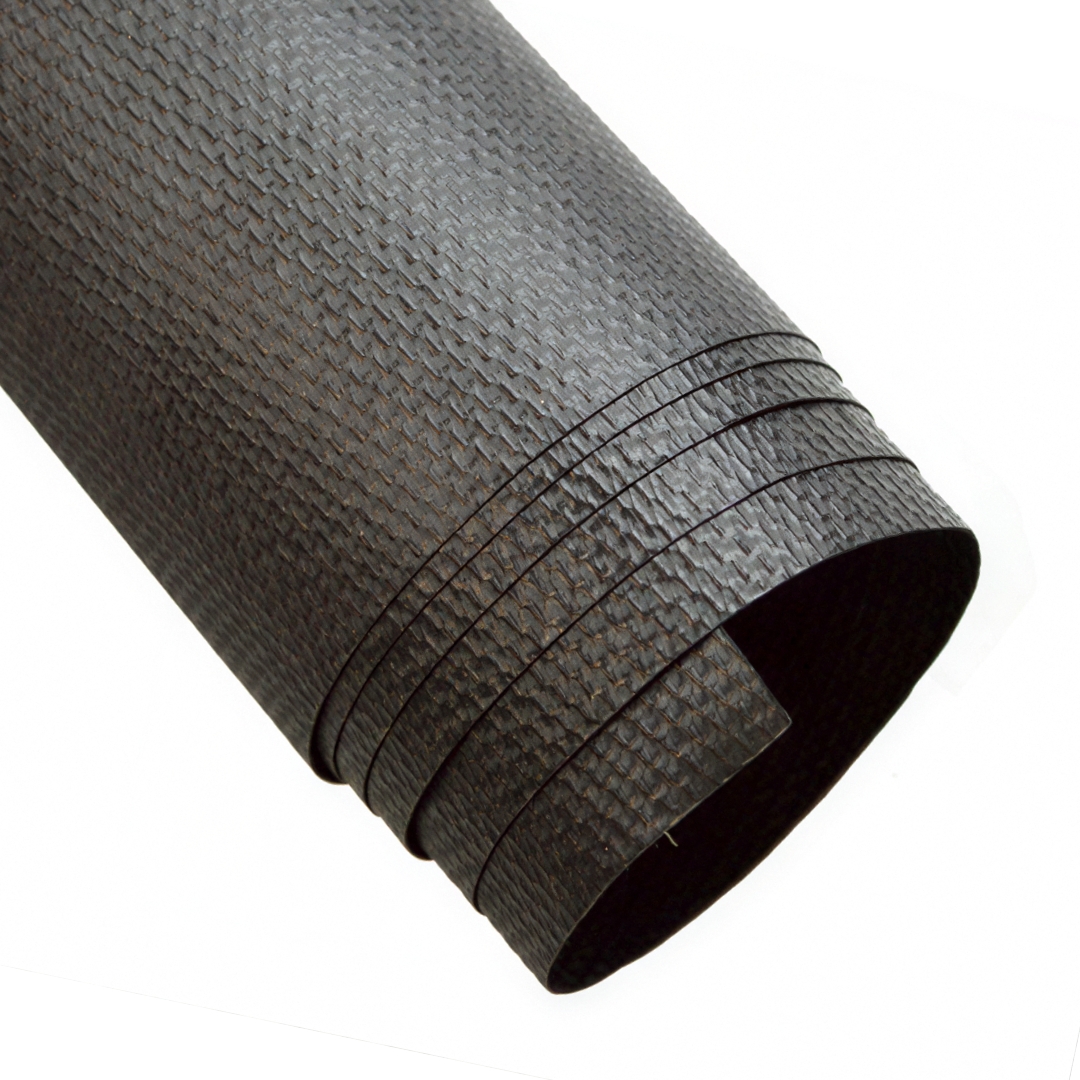

CrossFilm™ (100% PTFE)
Zero porosity, 600°F (316°C) continuous, FDA/FM certified.

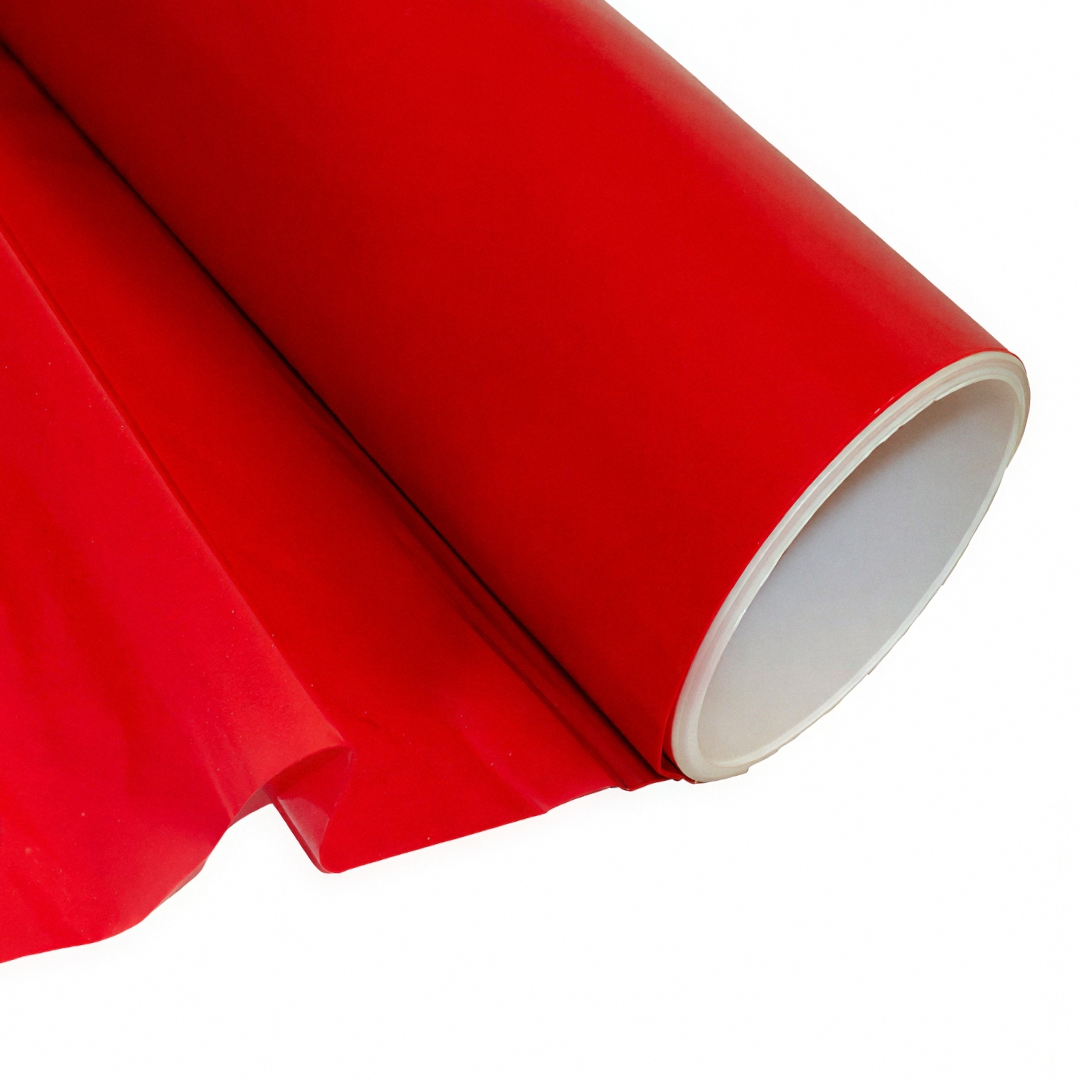

PTFE Coated
High dielectric strength and dimensional stability at high temps.

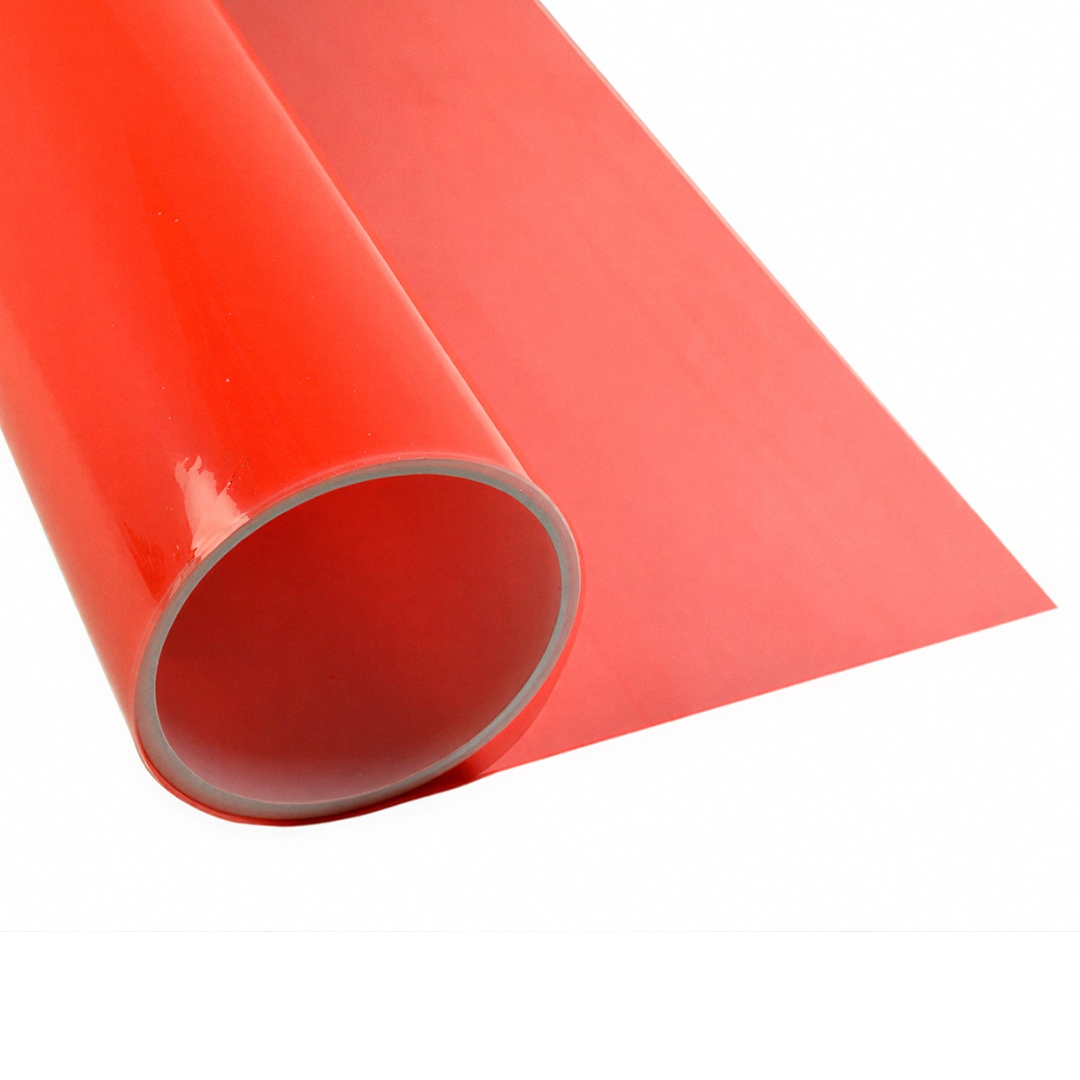

FEP Coated
Superior release, weldable, low thermal hysteresis.

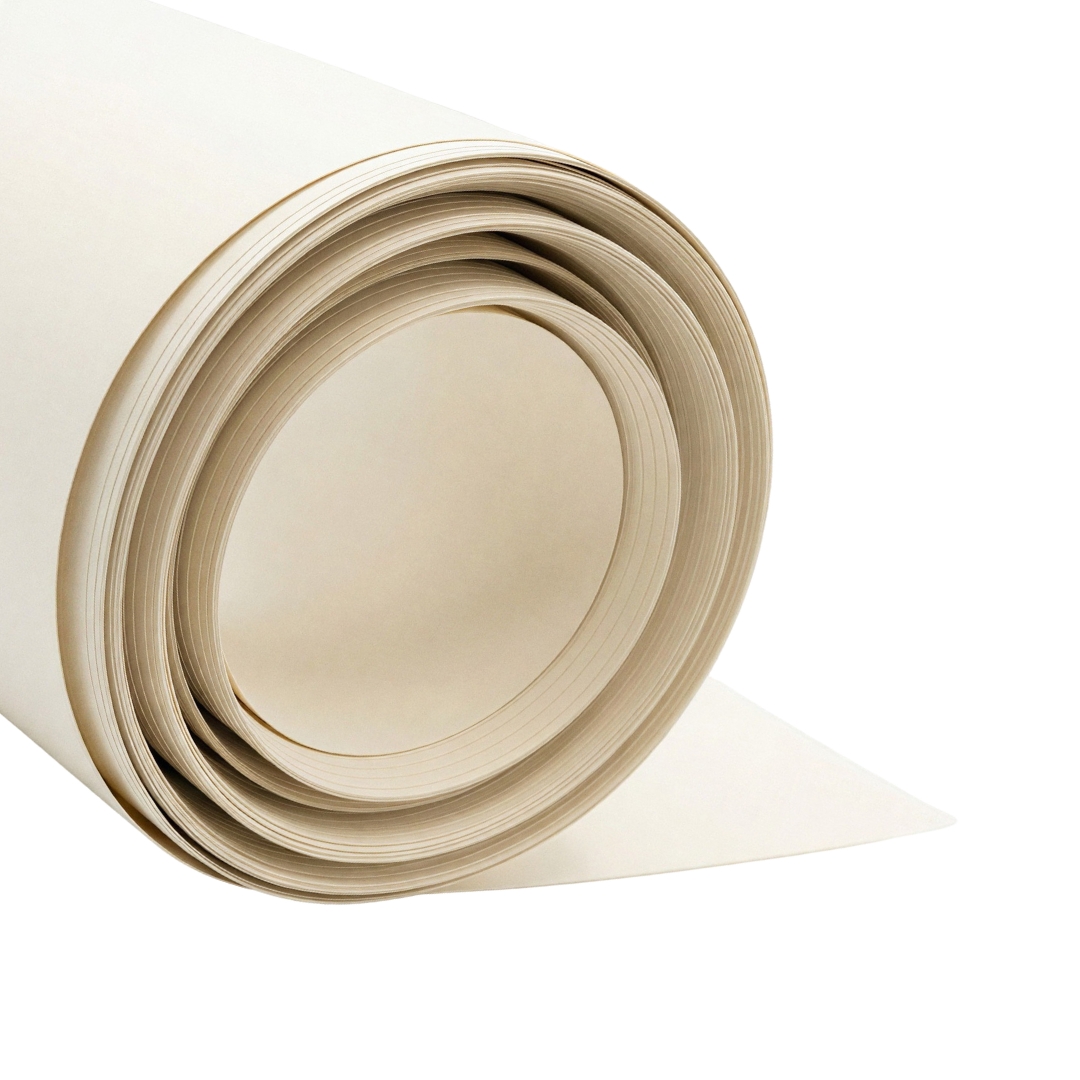

LCP
(Liquid Crystal Polymer) Lowest hydrogen permeation vs. other polymers.
Ready to Specify TCI Materials for Your Hydrogen Application?
Contact UsGet in Touch
Ready to order? Our team is available to help you find the right product for your application.
